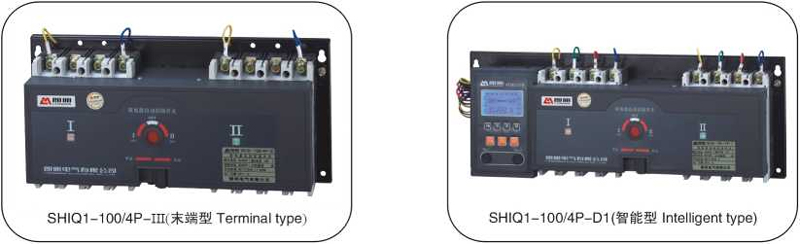

SHIQ1-III/D Series Dual Power Automatic Transfer Switch

Short Description:

GENERAL

Control device: LCD controller

Product structure: Small size, high current, simple structure, ATS integration Features: fast switching speed, low failure rate, convenient maintenance, reliable performance(with automatic switching time can be adjusted, 1s 〜99s)

Connection: Front connection

Conversion mode: Power on the grid, grid generator, auto-charge & auto-recovery auto-charge & non-auto-recovery and mutual standby

Frame current: 63, 100, 225, 400, 630, 800, 1250, 1600

Product current: 20, 32, 40, 63, 80, 100, 125, 160, 200, 225, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600A

Product classification: Circuit breaker (CM1, TM30)

Pole No: 3, 4

Standard: GB/T14048.11

ATSE: CB class, with overload and short-circuit protection

Send email to us

Product Detail

Product Tags

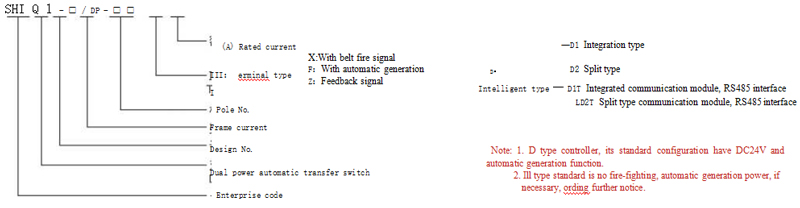

Model and meaning

product-description1

Technical requirement

product-description2

♦In the automatic, when the common power supply, under-voltage, over-voltage, loss of pressure transferred to the standby power supply. When the standby power appeared in the same failure, converted to double position, display screen will display and alarm automatically at the same time.
♦LCD screen is protecting in the 30s, on the button for the first-time display screen will display, the second time can enter the settings, enter setup requires a password input.
♦When the artificial set garbled (crash), the reset button reset to set the value of silence.
♦When the controller is arranged in the automatic, manual position, pressing the control panel double key display double, but not alarm.
♦The controller sets delay switching time, when there is a power failure recovery in the value set, dual power supply without switching, opposite, and switching.

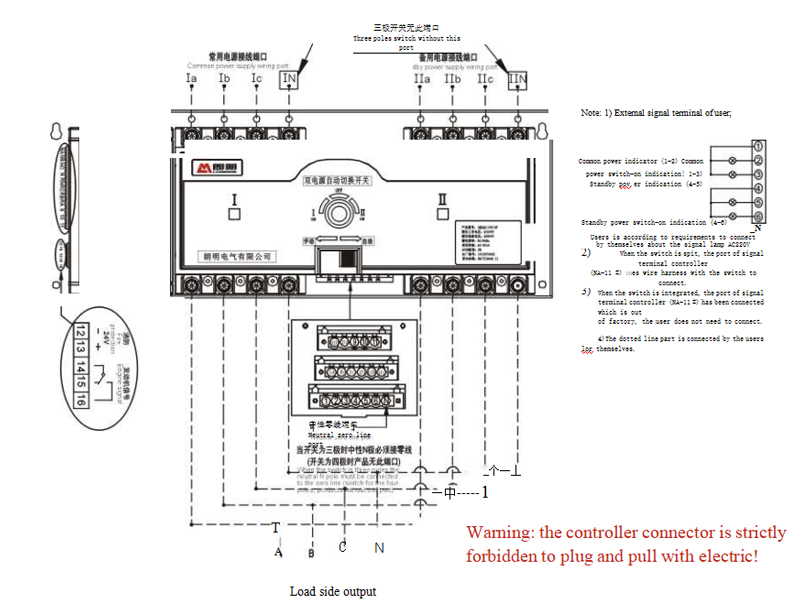

Wiring principle drawing

product-description3

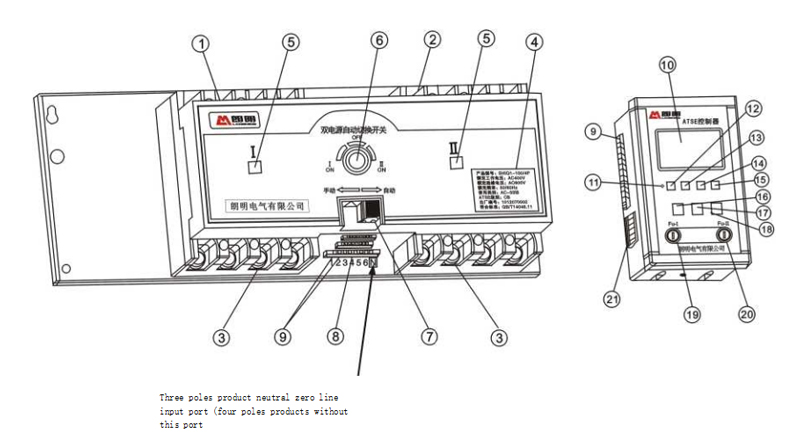

Products panel illustrates

product-description4

① Into the line of the main terminal of common power ⑨ Controller signal connection terminal		17Automatic key
② Into the line of the main terminal of standby power ⑩ LCD display		18Double bond key
③ Output main terminal of common power and standby power ⑪ Restore factory default key		19The insurance holder of common power supply
④ Nameplate	⑫ Set key	20The insurance holder of standby power supply
⑤Common power opening and closing indicator 13 Shift key		21Generator signal port and fire-fighting
⑥Handle socket	⑭ Digital "+” key	connection port
⑦Jack board button	15 Digital key
⑧External signal terminal for user	⑯ Manual key

Main technical parameters

Model Item -100(63)			SHIQ1 -225	SHIQ1 -400	SHIQ1 -630	SHIQ1 SHIQ1 -800 -1250		SHIQ1 -1600
Usage category		AC-33iB
Ue Rated working voltage		AC400V					AC380V
Ui Rated insulation voltage		690V
Uimp Rated impulse withstand voltage		6kV	6kV	6kV	6kV	6kV	8kV	8kV
Icn Rated short circuit breaking capacity		10kA	10kA	20kA	30kA	30kA	30kA	30kA
Icm Rated short circuit making capacity		17kA	17kA	40kA	63kA	63kA	63kA	63kA
Service lifetimes)	Mechanical	4500	5000	3000	2000	2000	2500	2500
	Electrical	1500	1000	1000	1000	1000	500	500
Pole No.		3、4
Operating cycles(S/times)		30S		60S
Switching time		。〜99S

Overall and installation dimension

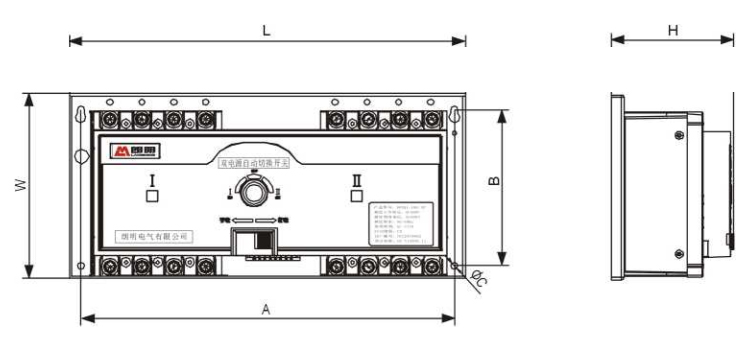

1, The switch body, overall dimension and installation dimension

product-description5

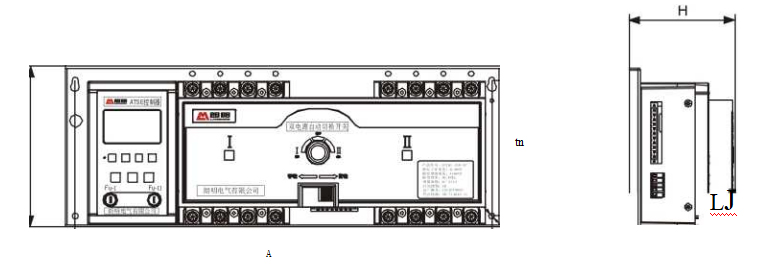

Integration type overall and installation dimension

Dimension Model PoleNo.		Overall dimension (mm)			Installation dimension (mm)
		L	W	H	A	B	øC
SHIQ1-63	3P	390	157	130	370	130	5.5
	4P	415			395
SHIQ1-100	3P	442	174	115	422	147	6.5
	4P	472			452
SHIQ1-225	3P	481	189	135	461	162	6.5
	4P	516			496
SHIQ1-400	3P	608	282	195	582	252	8
	4P	655			629
SHIQ1-630	3P	685	295	200	659	264.5	8
	4P	742			716
SHIQ1-800	3P	713	305	190	689	274.5	10
	4P	840			816
SHIQ1-1250	3P	723	475	240	699	312	10
	4P	850			825
SHIQ1-1600	3P	723	475	240	699	312	10
	4P	850			825

product-description6

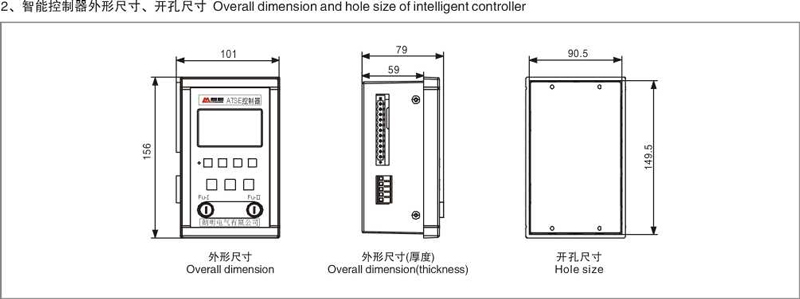

♦ Split type, terminal type overall and installation dimension

Dimension Model Pole No.		Overall dimension(mm)			Installation dimension (mm)
		L	W	H	A	B	0 C
SHIQ1-63	3P	285	157	130	265	130	5.5
	4P	310			290
SHIQ1-100	3P	337	174	115	317	147	6.5
	4P	367			347
SHIQ1-225	3P	376	189	135	356	162	6.5
	4P	411			391
SHIQ1-400	3P	503	282	195	479	252	8
	4P	550			524
SHIQ1-630	3P	584	295	200	558	264.5	8
	4P	641			615
SHIQ1-800	3P	616	305	190	592	274.5	10
	4P	743			719
SHIQ1-1250	3P	616	475	240	592	312	10
	4P	743			719
SHIQ1-1600	3P	616	475	240	592	312	10
	4P	743			719
