SHIQ8 (Two Section and Three Section)

Short Description:

GENERAL

Control type: A type: Light emitting diode, B type: LED Digital tube,

C type: LCD Liquid crystal

Product structure: small size, high current, simple structure, ATS integration Features: fast switching speed, low failure rate, convenient maintenance, reliable performance (with automatic switching time can be adjusted, 0s – 255s) Connection: front connection

Conversion mode: power on the grid, grid generator, auto-charge & auto- recovery auto-charge & non-auto-recovery and mutual standby

Frame current: 63, 125, 250, 630

Product current: 20, 32, 40, 50, 63, 80, 100, 125, 160, 200, 225, 250, 315, 350, 400,500, 630A

Product classification: two sections without double-break position, three sections with intermediate double-break position

Pole No.: 2, 3, 4

Standard: GB/T14048.11

ATSE: PC class


Product Detail

Product Tags

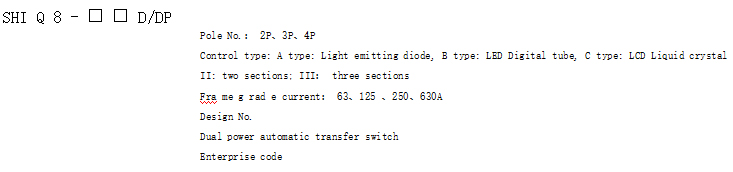

Model and meaning

product-description1

Structural features and functions

The SHIQ8 switch as main and standby dual power automatic switch adopts electromagnetic drive and electrical and mechanical inter -locking mechanism. The main circuit contacts are static and dynamic, and the movable contacts are V-shaped. In order to avoid long-term electrification of electromagnetic coils, electric closing and mechanical maintenance are adopted. Therefore, under steady-state working conditions, the operating mechanism does not need to provide working current, and the energy saving is remarkable. The control power is from the main power supply of AC 220V (without additional control current). Because of its superior structure, the main and standby power supply will not be connected at the same time, which ensures that the standby power supply works reliably and does not interfere with each other. The switch has electrical or mechanical closing instructions, at the same time, it can provide customers with normal open and closed passive contacts for other purposes.
The intelligent controller also provides functions with loss of pressure, under-voltage, over-voltage, conversion delay control, generator signal control, feedback signal and etc., and strong anti-interference ability; Having auto-charge & auto-recovery, auto-charge & non-auto -recovery and mutual standby three conversion modes;
The two-sections have common power ON, standby power OFF; common power OFF, standby power ON; two steady working states.
The three-sections have common power ON, standby power OFF; common power OFF, standby power OFF; common power OFF, standby power ON; three steady working states.
Easy to install.
Available special handle for manual conversion in manual mode.

Main technical parameters

Item Model

SHIQ8-63

SHIQ8-125

SHIQ8-250

SHIQ8-630
Usage category

AC-33B

Rated working voltage(Ue)

AC400V

Rated insulation voltage(Ui)

AC800V

Rated impulse withstand voltage(Uimp)

8kV

Rated limiting short circuit current(lq)

100kA

 Mechanical

6000

5000

Service lifetimes)  Electrical

1500

1000

2

Pole No.

3

4

Operating cycles(S/times)

30S

Switching time

0 〜255S

Controller parameter function

Detailed Function of Controller Parameters

Control type A Type B Type C Type
Installation mode

Integral type

Integral/split type

Automatic operation

.

Handle operation

.

Controller key operation

.

.

.

Communication remote control (485)

.

Monitoring common overvoltage

A/B/C Three-phase

A/B/C Three-phase

Monitoring common undervoltage

A/B/C Three-phase

A/B/C Three-phase

Monitoring common loss of pressure

A/B/C Three-phase

A/B/C Three-phase

Monitoring common phase lack

A/B/C Three-phase

A/B/C Three-phase

Monitoring standby overvoltage

A Phase

A/B/C Three-phase

Monitoring standby undervoltage

A Phase

A/B/C Three-phase

Monitoring standby loss of pressure

A Phase

A/B/C Three-phase

Monitoring standby phase lack

A Phase

A/B/C Three-phase

Auto-charge & auto-recovery

.

Auto-charge & non-auto-recovery

.

Mutual standby

.

(V) Common and standby undervoltage setting

Default 170 V

Default 170V(Adjustable range 130~200V)

(V) Common and standby overvoltage setting

Default 265V

Default265V(Adjustable range 250~300V)

Conversion delay time settings

0-5s

0-90s

Transient dwell time (II type)

Transient dwell time (III type)

0-90s

0-99s

0-255S

Return delay time settings

0-5s

0-90s

0-90s

Controller panel display

Common and standby power

.

.

Common power OFF and ON

.

Standby power OFF and ON

.

.

Common power voltage

.

Standby power voltage

Fault alarm display

.

Fire linkage status (II type)

Fire linkage status (III type)

.

Display mode

LED

LED Digital tube

LCD Chinese

User external port

Common power closing

Standby power closing

.

Generator control (passive)

.

.

.

Fire Linkage (II type)

Fire linkage (III type)

.

.

.

Fire linkage feedback signal (II type)

Fire linkage feedback signal (III type)

.

.

.

Communication port (485)

.

Note: "■"means that it has this function, and "一" means that it does not have this function.

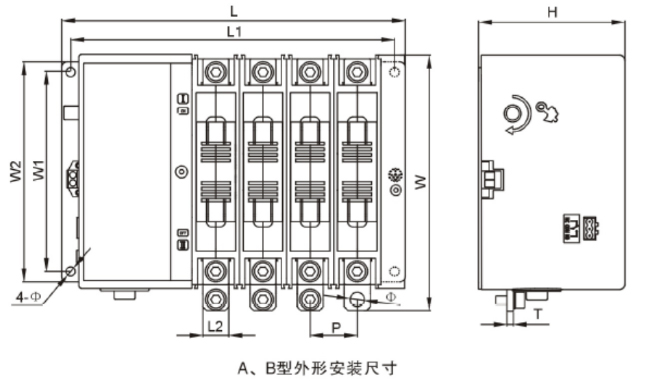

Overall and installation dimension

product-description2

Model

Overall dimension

Installation dimension

Copper bar dimension

L

W

W2

H

L1

W1

4-①

L2

T

P

2P

3P

4P

2P

3P

4P

SHIQ8-63 IIA/B type 170 194 218

195

168

112

156

180

204

152

7

12

2 24 6.5
SHIQ8-125 II A/Btype 180 210 240

195

168

112

166

196

226

152

7

15

2.5

30 8.5
SHIQ8-250 II A/B type 196 232 268

195

168

112

182

218

254

152

7

20

4 36 8.5
SHIQ8-630 II A/Btype 297 357 417

284

226

138

276

336

396

206

9

40

5 60

13

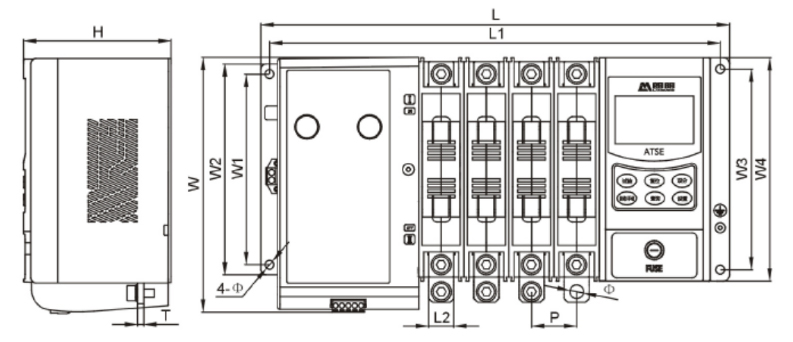

C-type overall installation dimension

product-description3

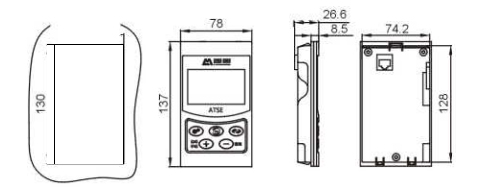

Overall installation dimension of C-type split controller: 75x130

Model

Overall dimension

Installation dimension

Copper bar dimension

L

W W2 W4

H

L1

W1 W3

4-0

L2 T

P

2P

3P

4P

2P

3P

4P

SHIQ8-63 II C type 256 280 304 195 168 178 112 242 266 290 152 160 7 12 2 24 6.5
SHIQ8-125 II C type 266 296 326 195 168 178 112 252 282 312 152 160 7 15

2.5

30 8.5
SHIQ8-250 II C type 282 318 354 195 168 178 112 268 304 340 152 160 7 20 4 36 8.5
SHIQ8-630 II C type 388 449 510 284 226 226 143 368 429 490 206 206 9 40 5 60 13

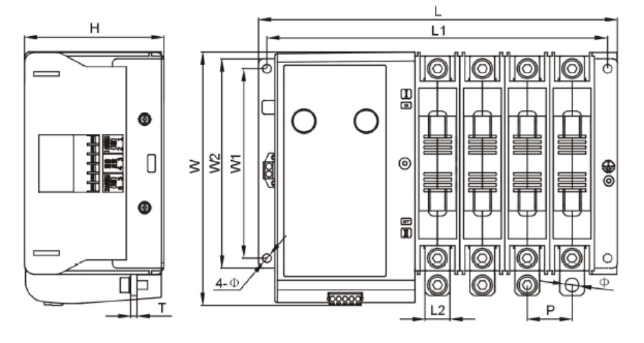

(2) Overall and installation dimension of three section

product-description4

A. B-type overall installation dimension

Model

Overall dimension

Installation dimension

Copper bar dimension

L

W

W2

H

L1

W1

4-①

L2 T

P

2P

3P

4P

2P

3P

4P

SHIQ8-63 IIIA/B type 196 220 244 203 168 112

182

206 230 152 7 12 2 24 6.5
SHIQ8-125 III A/B type 206 236 266 203 168 112

192

222 252 152 7 15

2.5

30 8.5
SHIQ8-250 III A/B type 222 268 294 203 168 112

208

244 280 152 7 20 4 36 8.5
SHIQ8-630 III A/B type 297 357 417 284 226 138

276

396 396 206 9 40 5 60

13

product-description5

C-type overall installation dimension

product-description6

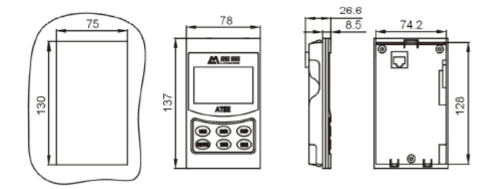

Overall installation dimension of C-type split controller: 75x130

Model

Overall dimension

Installation dimension

Copper bar dimension

L

W

W2 W4

H

L1

W1

W3

4-0

L2 T

P

2P

3P

4P

2P

3P

4P

SHIQ8-63 III C type 282

306

330 203 168

178

118

268

292

316

152

160

7 12 2

24

6.5
SHIQ8-125 III C type 292

322

352 203 168

178

118

278

308

338

152

160 7 15

2.5

30

8.5
SHIQ8-250 III C type 308

344

380 203 168

178

118

294

330

366

152

160 7 20 4

36

8.5
SHIQ8-630 III C type 388 449 510 284 226

226

143

368

429

490

206

206

9 40 5

60

13
